Van Converter Power Distribution Unit

SKU: BC21001


Connector kit

The connector PDU harness kit is the ideal solution for converting your van into a camper. A compact yet powerful PDU unit, and everything you’ll need to connect to the PDU. The perfect kit if you wish to carry out all your own wiring and choose your control panel; carrying out a conversion couldn’t be easier!

Ideal for conversion of the VW T4 and VW T5, Cucato, Transit, Sprinter, Crafter, Boxer, Relay and much more.

Please allow  3 -5  Working day for delivery

Additional Information

Included in Converter Power Distribution Unit kit: PDU & Connector Kit

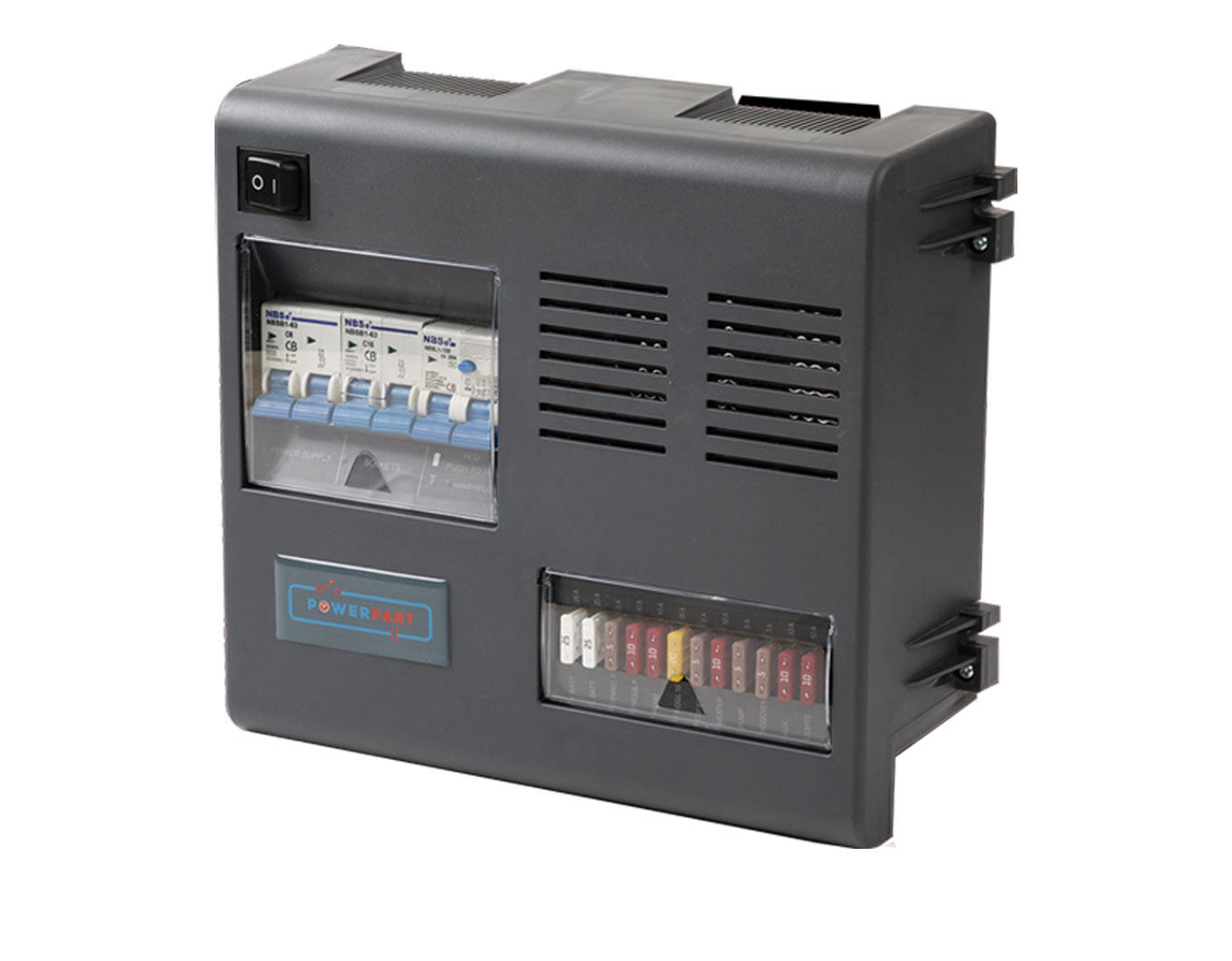

The PDU has a 230V input to a 25amp RCD that provides 4 230V outputs for sockets and appliances through a 16 amp MCB. It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V.

There are 12 separate fuse protected outputs for: Auxiliary, Lights, Hob/Oven, Heater, Pump/Toilet, Control Panel Ign, Control Panel Perm, Fridge, Fridge 3S, Permanent, Leisure Battery, Vehicle Battery.

PDU Dimensions – Width: 307mm  Depth: 93mm Height: 262mm

This Kit also comes with all the connectors and terminals needed to connect to the PDU


Technical Specification
