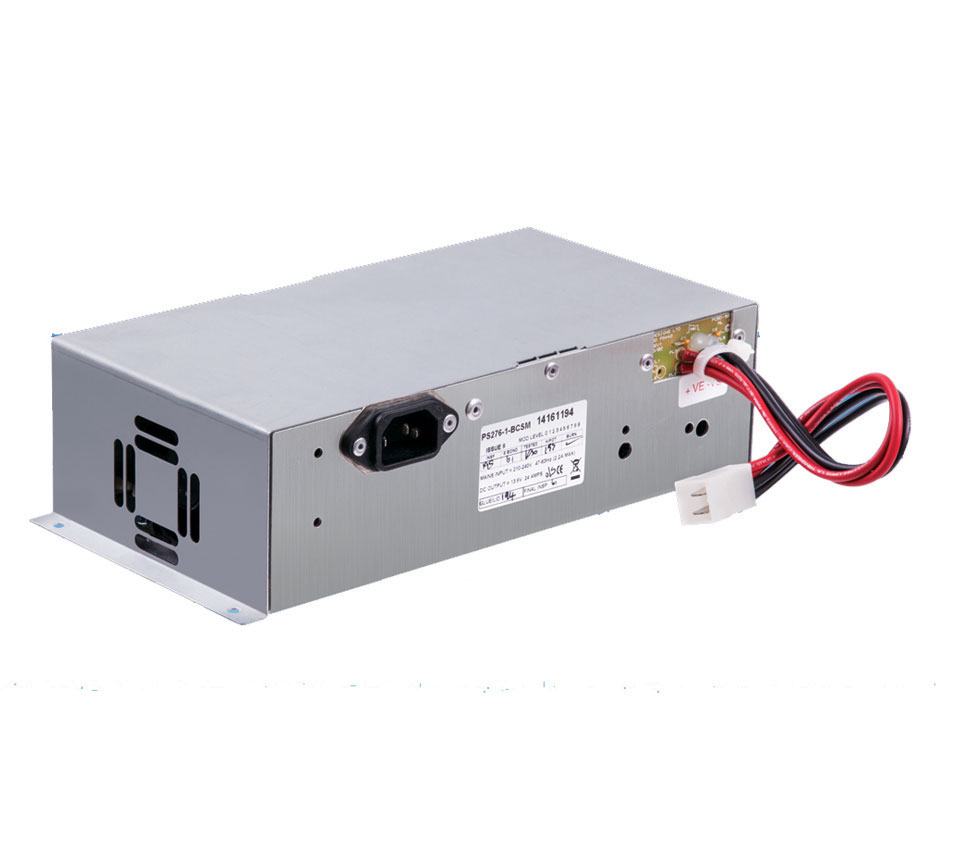

Caravan & Motorhome Power Unit/Transformer – 20Amp

SKU: PO120

£138.90

BCA’s 20 Amp output Power Unit Transformer is the complete 12 volt supply unit, a fully automatic supply direct to the caravan appliance and electronically controlled battery charging. Designed to operate in all European countries and charge a totally flat battery. To ensure a silent night time operation, the fan switches off at low loads. The fan will start to operate once the load current is in region of 5A – 8A

The easy to fit Power Unit comes with full fitting instructions and is fully guaranteed for one year from date of purchase.

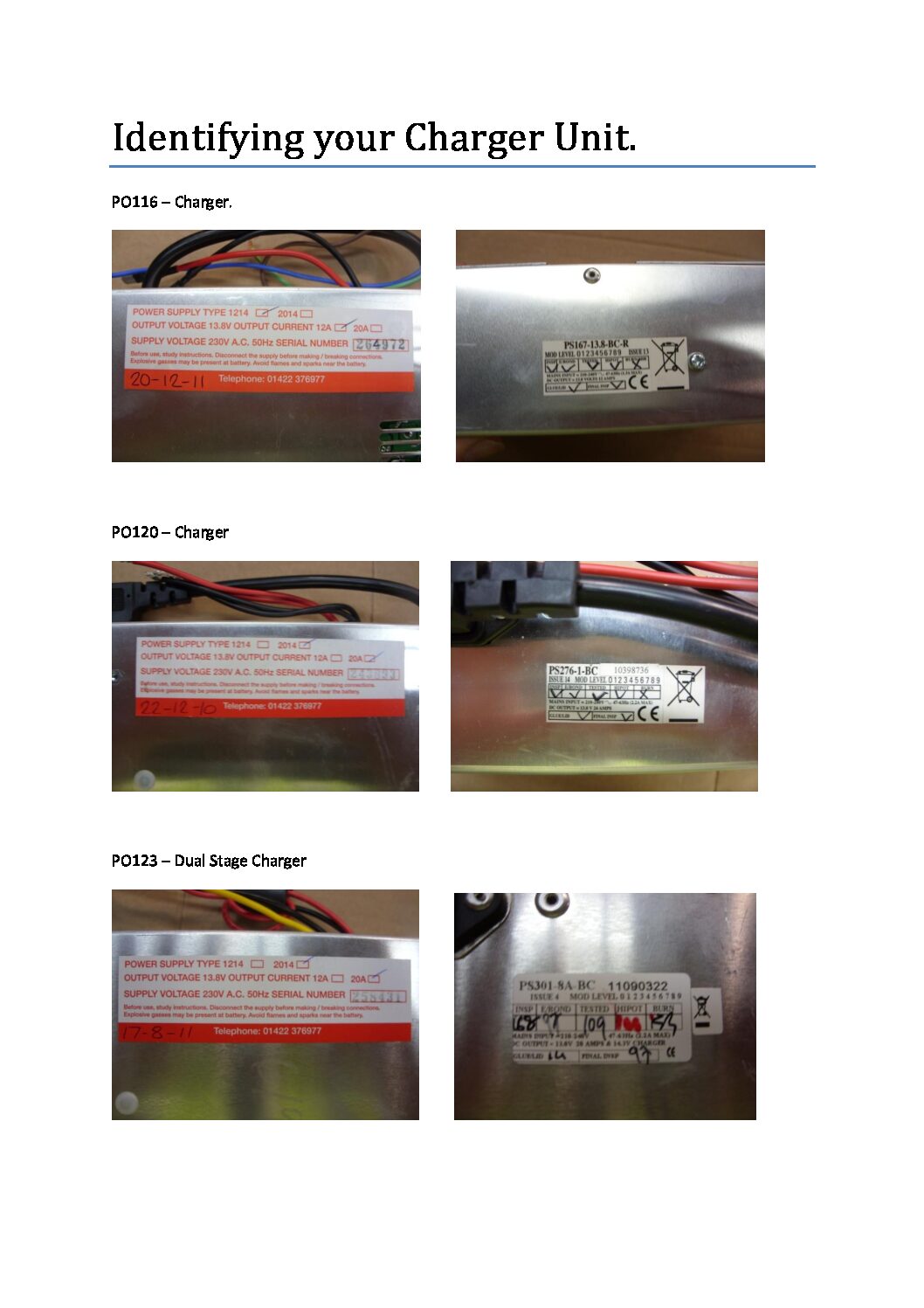

BCA Part Number PS276-1-BC (some models may be PS276-13.8-BC)

Dimensions: (W) 250mm x (D) 125mm x (H) 67mm

Additional Information

BCA’s 20 Amp output power supply unit powers the 12V system in the habitation area of the leisure vehicle as well as supplies a float charge to the leisure battery.

BCA Part Number PS276-1-BC (some models may be PS276-13.8-BC)

One of the best power supplies on the market today

Fitted as standard to:

Bailey: All Caravans

Coachman: Amara, Vison, Pastiche (’16), VIP (’16), Laser (’16)

Elddis/Compass: All Models except the Encore Motor Homes.

Lunar: All Models Pre-2015

The Unit has the below features.

  • 13.8V 20A output for DC power or battery charging or both
  • Short circuit protection
  • Active power factor correction
  • 180V-264V Input
  • Load dependant fan cooling
  • Silent night time operation
  • Fully boxed
  • Size 255mm x 124mm x 67mm
  • Size and fixing compatible with caravan power distribution systems
  • High efficiency
  • EMC to EN55014-B to ensure no interference
  • Safety to EN60950
  • Harmonics to EN61000

safety information:

  • The battery must be housed within a battery compartment in accordance with BS EN 1648/1 caravans, BS EN1648/2 motorhomes.
  • The battery must be firmly secured and in an upright position.
  • Handling and the proper use of batteries are not hazardous providing sensible precautions are observed.
  • Always follow the manufactures instructions and warnings for both the product and batteries included.
  • This battery charger must not be used for recharging NI-Cad or other types of dry cell batteries.
  • DO NOT open the unit as there are high voltage components contained with-in the unit.
  • DO NOT attempted to mutilate a battery
  • DO NOT burn batteries or electrical equipment.
  • DO NOT dispose of electrical equipment/ batteries with household waste. Follow the manufacturer’s instructions or contact your local authority on the correct disposal methods.



Technical Specification

Additional information

Weight 1.5 kg
Depth (Boxed) (mm)

120

Height (Boxed) (mm)

170

Height (Unboxed) (mm)

170

Width (Boxed) (mm)

270

Width (Unboxed) (mm)

250

Packing Location

A001

Compatibility

This product is compatible with the following vehicle makes:
