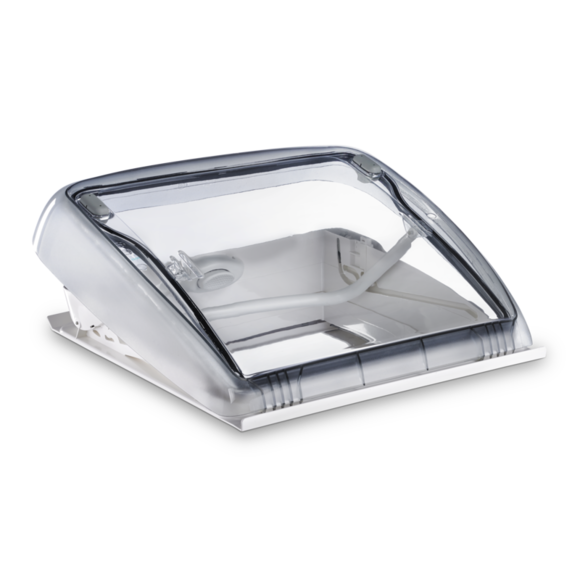

Mini Heki Plus Rooflight (400 x 400 without Vent (43-60))

SKU: SE40120

In stock

£189.00

Every vehicle instantly seems so much more inviting when equipped with this compact roof light, which admits just the right amount of light into the interior.

Opens to three positions: fully open, half-open and bad-weather position.

In stock

Additional Information

Every vehicle instantly seems so much more inviting when equipped with this compact Mini Heki Plus rooflight, which admits just the right amount of light into the interior.

Opens to three positions: fully open, half-open and bad-weather position.



General
Dometic’s part number 9104116243
Model Mini Heki Plus Style
Model on label Mini Heki Style
Rooflight with manual in box
Roof window without forced ventilation, roof thickness 43–60 mm

Dimensions

  • Product depth 520 mm
  • Product width 535 mm
  • Ordered width 400 mm
  • Ordered height 400 mm
  • Opening width 384 mm
  • Opening height 364 mm
  • Net weight 3.30 kg
  • Standard mount. material thickness 1 min 60 mm
  • Possible material thickness 1 min 43 mm
  • Possible material thickness 1 max 59 mm
  • Cut out height 400 mm
  • Cut out width 400 mm

Additional
Opening angle max 50.00 °
Positions fixed 3
Certificates eMark

Technical Specification

Additional information

Weight 4.6 kg
Dimensions 53 × 23 × 58 cm
