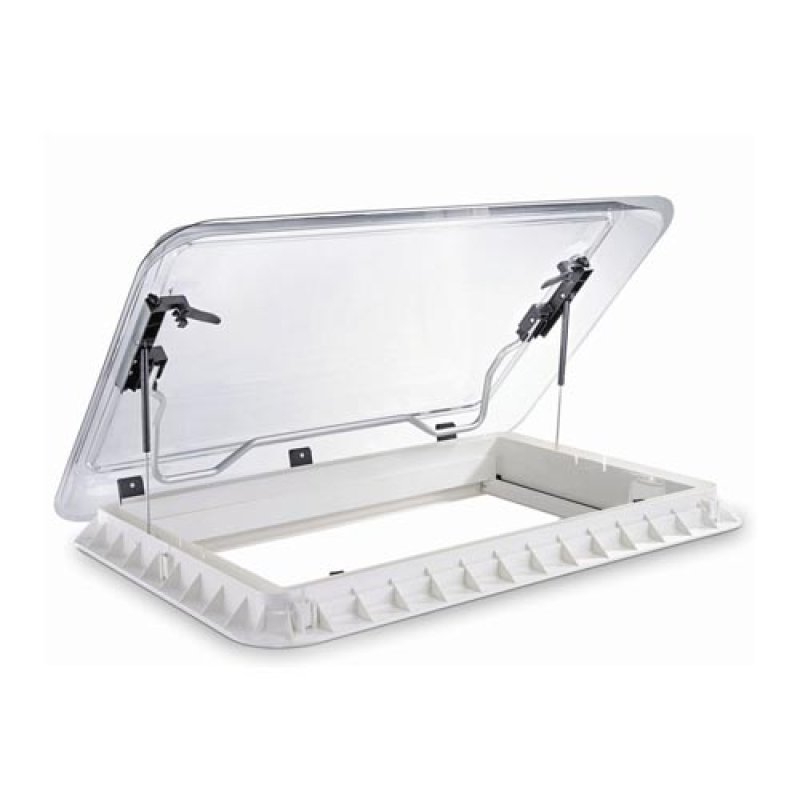

Dometic Heki 2 Rooflight 960 x 655

The Dometic Heki 2 admits lots of light and fresh air into caravans. A roller fly screen and darkening blind are mounted on the inner frame and can be adjusted independently or together. The window panel is easy to open using a metal bar handle and has pneumatic springs to hold it securely in place. A bad weather position keeps rain out while preventing the wind from lifting the panel. Enjoy fresh air and light at your own convenience.

General
SKU number 9104100235
Model Dometic Heki 2
Model on label Hebekippdach 2, Art.1127

Dimensions
Product depth 790 mm
Product width 1080 mm
Ordered width 960 mm
Ordered height 655 mm
Opening width 780 mm
Opening height 530 mm
Net weight 11 kg
Standard mount. material thickness 1 min 25 mm
Standard mount. material thickness 1 max 32 mm
Possible material thickness 1 min 33 mm
Possible material thickness 1 max 60 mm
Ventilation opening 115 cm2
Cut out height 655 mm
Cut out width 960 mm

Additional
Opening angle max 55.00 °
Positions fixed 3
Certificates eMark
