Van Converter Power Distribution and Harness Kit

SKU: BC21004

£305.00

Standard Wiring kit

The converter PDU harness kit is the ideal solution for converting your van into a camper. With a complete plug and play system, compact yet powerful PDU unit and sleek control panel, carrying out a conversion couldn’t be easier.

Ideal for conversion of the VW T4 and VW T5, Ducato, Transit, Sprinter, Crafter, Boxer, Relay and much more.

Additional Information

Van Converter power distribution and harness kit

Included in kit: PDU, wiring harness, Vegas control panel

The PDU has a 230V input to a 25amp RCD which provides four 230V outputs for sockets and appliances through a 16 amp MCB. It also has a 6amp MCB for the 10amp power supply which converters 230V to 12V.

There are 12 separate fuse protected outputs for: auxiliary, lights, hob/oven, heater, pump/toilet, control panel ign, control panel perm, fridge, fridge 3S, permanent, leisure battery, vehicle battery.

PDU dimensions – Width: 307mm  Depth: 93mm Height: 262mm

The wiring harness has 300mm ignition, permanent and water probe options from the PDU and a 1m length from the PDU. This then breaks out into separate 1m lengths to feeds for; x2 lights, x2 auxiliary, 12V fridge, heater, hob/oven, toilet, pump and a 2M length to the control panel.

Vegas control Panel is x2 C-Line in size. The Button panel has a master switch, lights switch and awning light switch, 2amp rated (connection to awning light from control panel). The Meter panel has a voltmeter.

PLEASE ALLOW 3 – 5 WORKING DAYS FOR DELIVERY

Technical Specification

Additional information

You may also like…

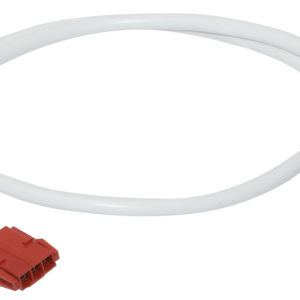

  • Converter Prewired 2 Mtr Extension Lead
