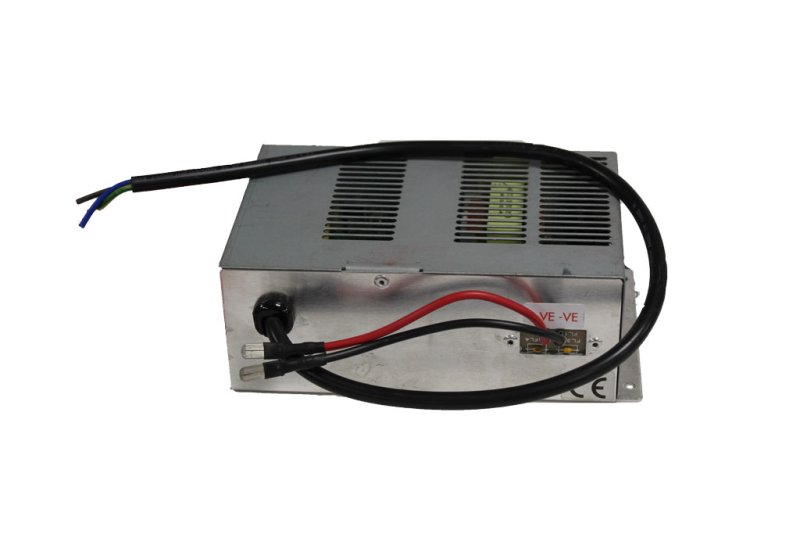

Caravan Power Unit/Transformer – 10 Amp

10 Amp power supply unit transformer – BCA Part Number PS167-13.8-BC-R

BCA’s 10 Amp output Power Unit powers the 12V system in the living area of the leisure vehicle as well as supply a float charge to the Leisure battery.

One of the best power supplies on the market today

Fitted as standard to: Adria – All Models

The Unit has the below features

• 13.8V 10A output for DC power or battery charging or both
• Short circuit protection
• Active power factor correction
• 180V-264V Input
• Fully boxed
• Size 185mm x 111mm x 63mm
• Size and fixing compatible with caravan power distribution systems
• High efficiency
• EMC to EN55014-B to ensure no interference
• Safety to EN60950
• Harmonics to EN61000-1: 2006
• Maximum Output 13.8 Volts 12 Amps

safety information:

• The battery must be housed within a battery compartment in accordance with BS EN 1648/1 caravans, BS EN1648/2 motorhomes.
• The battery must be firmly secured and in an upright position.
• Handling and the proper use of batteries are not hazardous providing sensible precautions are observed.
• Always follow the manufactures instructions and warnings for both the product and batteries included.
• This batter charger must not be used for recharging NI-Cad or other types of dry cell batteries.
• DO NOT open the unit as there are high voltage components contained with-in the unit.
• DO NOT attempted to mutilate a battery
• DO NOT burn batteries or electrical equipment.
• DO NOT dispose of electrical equipment/ batteries with household waste. Follow the manufacturer’s instructions or contact your local authority on the correct disposal methods.
