Caravan & Motorhome Battery Conditioner and Charger – 20Amp

SKU: PO123

£163.50

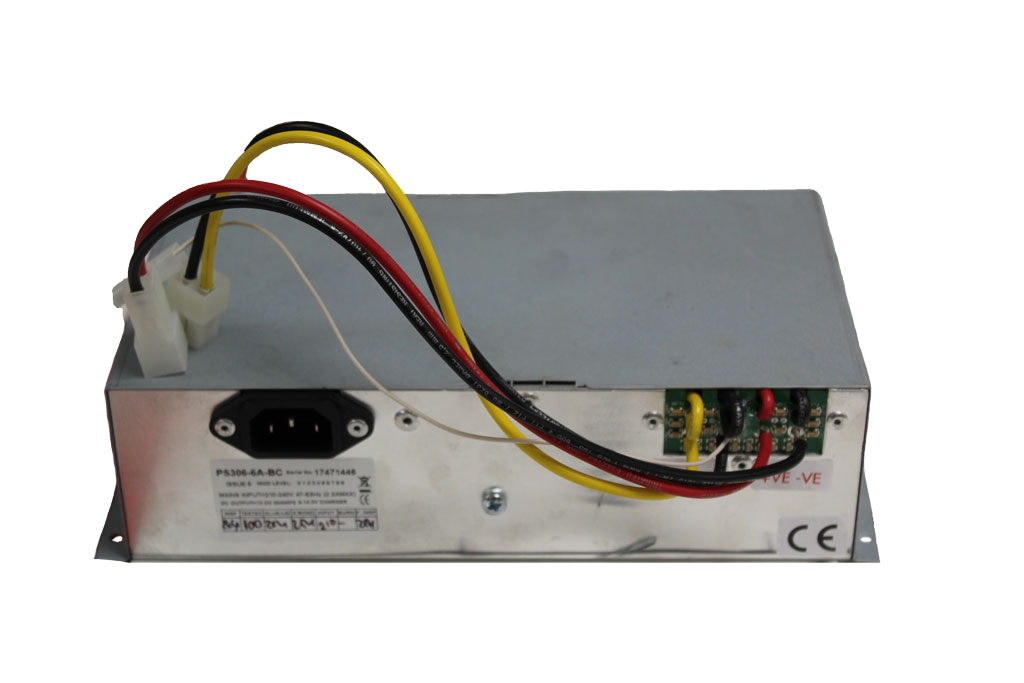

BCA’s Power Unit Transformer Dual output c/w three Stage Power charger with separate 8A battery charger is the complete 12 volt supply unit, a fully automatic supply direct to the caravan and motorhome appliance and electronically controlled battery charging. Designed to operate in all European countries and charge a totally flat battery. All chargers will auto cut out on short circuit or overload. To ensure a silent night time operation, the fan switches off at low loads. The fan will start to operate once the load current is in region of 5A – 8A

The easy to fit power unit comes with full fitting instructions and is fully guaranteed for one year from date of purchase.

There is now an extra white lead that is only used on 2015 Elddis and Bailey motorhomes – if you are replacing a transformer unit this lead can just be tucked out of the way and does not need to be connected to anything.

Additional Information

Battery conditioner and charger for caravans and motorhomes:

BCA Part Number PS306-6A-BC

BCA’s 20 amp output Dual Stage Power Supply powers the 12V system in the living area of the leisure vehicle as well as having a dedicated three stage charger for the leisure battery

One of the best power supplies on the market today

Fitted as standard to:

Bailey: All motor homes
Coachman: Pastiche (up to 2015), VIP (up to 2015), Laser (up to 2015).
Elddis: Encore Motor Homes, Equi-Trek Evolution.
Fifth Wheel: Inos range

PS306-6A-BC replaces older PS301-6A-BC versions. The extra white lead may be tucked out of the way

The unit has the below Features.

Output 1) 13.8V 20A output for DC power
Output 2) 6A 3-Stage Battery charging
Auto change over to battery power on mains fail
Mains 190Vac to 264Vac.
AC detect signal output
Load dependent fan cooling
Silent night time operation
Size 255mm x 124mm x 57mm
Size and fixing compatible with caravan power distribution systems
High efficiency
Active power factor correction
EMC to EN55014-B to ensure no interference
Safety to EN60950
Harmonics to EN61000-1: 2006
Fully boxed

We always recommend replacing like for like with chargers and any work should be carried out by someone competent.

safety information:

The battery must be housed within a battery compartment in accordance with BS EN 1648/1 caravans, BS EN1648/2 motorhomes.
The battery must be firmly secured and in an upright position.
Handling and the proper use of batteries are not hazardous providing sensible precautions are observed.
Always follow the manufactures instructions and warnings for both the product and batteries included.
This batter charger must not be used for recharging NI-Cad or other types of dry cell batteries.
DO NOT open the unit as there are high voltage components contained with-in the unit.
DO NOT attempted to mutilate a battery
DO NOT burn batteries or electrical equipment.
DO NOT dispose of electrical equipment/ batteries with household waste. Follow the manufacturer’s instructions or contact your local authority on the correct disposal methods.
